FROM HANDHELD TO HANDS-FREE

Spectrum Core

Radio frequency monitoring solution built for seamless integration with third-party systems

Highlights & Benefits

Key Characteristics

Spectrum Core

Easy to integrate spectrum analyzer

Spectrum Core simplifies RF spectrum analysis by providing direct connectivity to third-party systems. With its open API, it enables effortless communication without requiring additional software or hardware, making it OS-agnostic and highly adaptable for various industrial applications.

Remote-Controlled Operation

Access via API or Spectrum Manager PC software for real-time monitoring.

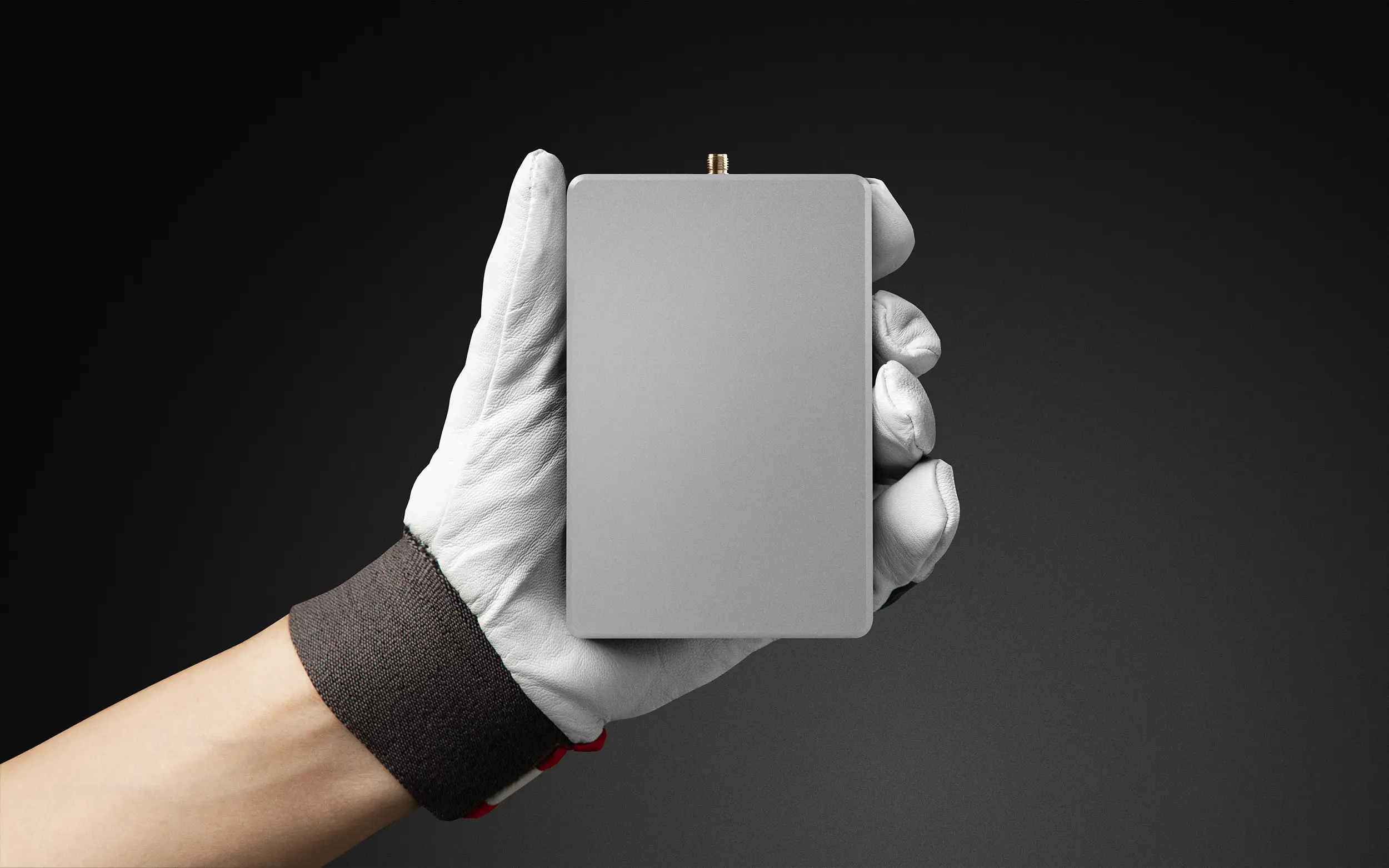

Compact & Lightweight

At just 135 x 84 x 28 mm and 400 g. Spectrum Core offers smartphone-sized form-factor.

Seamless Integrations

Supports DIN rail mounting, 19” rack compatibility, and custom mechanical designs (.STEP files available).

Built for Tought Environments

IP54-rated enclosure and -33C to +55C operating range for industrial-grade durability.

Low-Power, High-Performance Connectivity

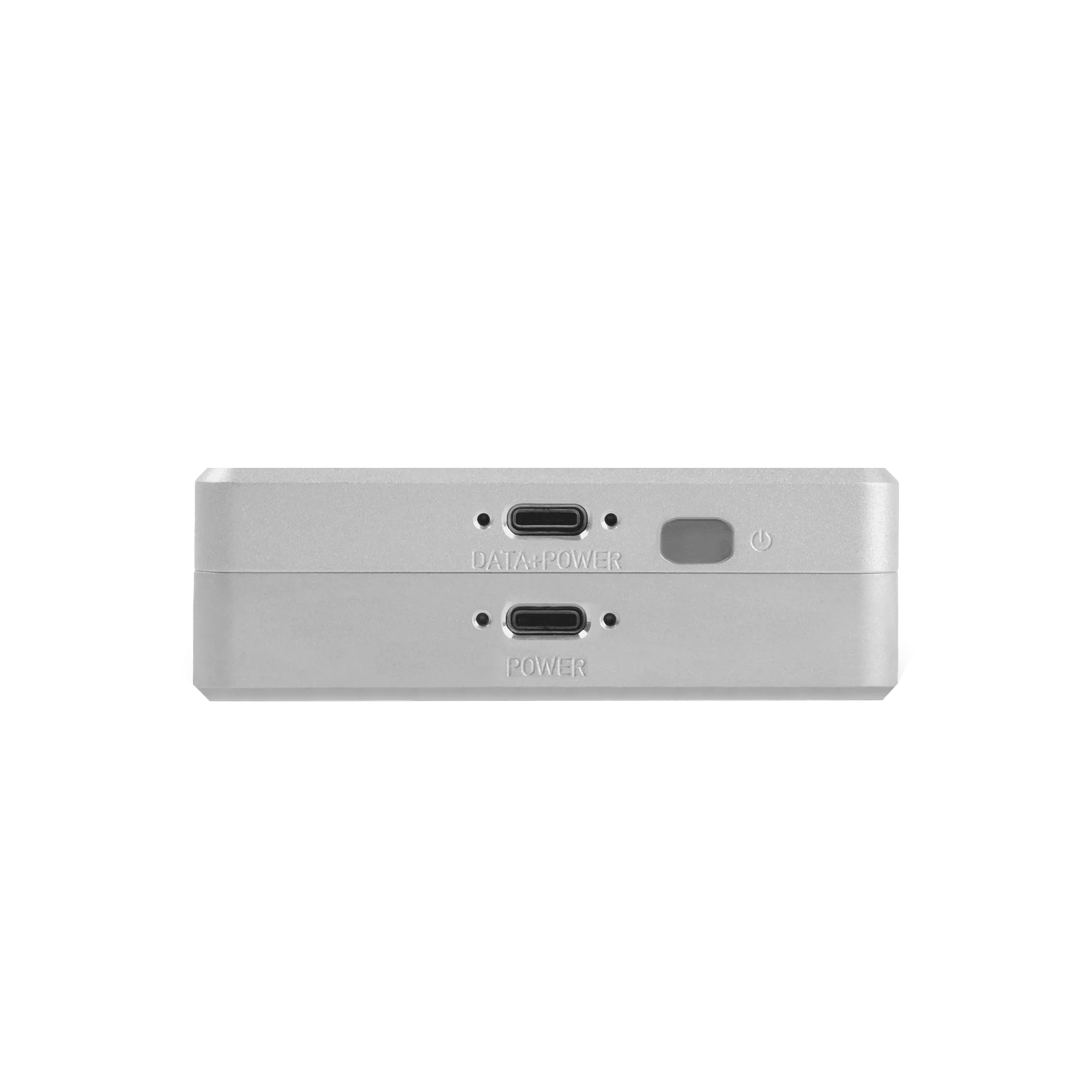

Efficient RF data processing via USB Type-C port, eliminating the need for high-power computing

Key Characteristics

None

Displayed average noise level

Max. input power

RBW

VBW

Min. span

Max. span

Sweep speed

Accuracy

Input

Interface data + power

Operating temperature

Dimensions

Weight

Ingress protection

0.01 - 3.0 GHz

<-125 dBm @ RBW=10 kHz

+25 dBm

10, 30, 100, 300 kHz

1, 3, 10, 30 kHz

0.5 MHz

full bandwidth

130 ms @ 15 MHz span

+/- 1 dB*

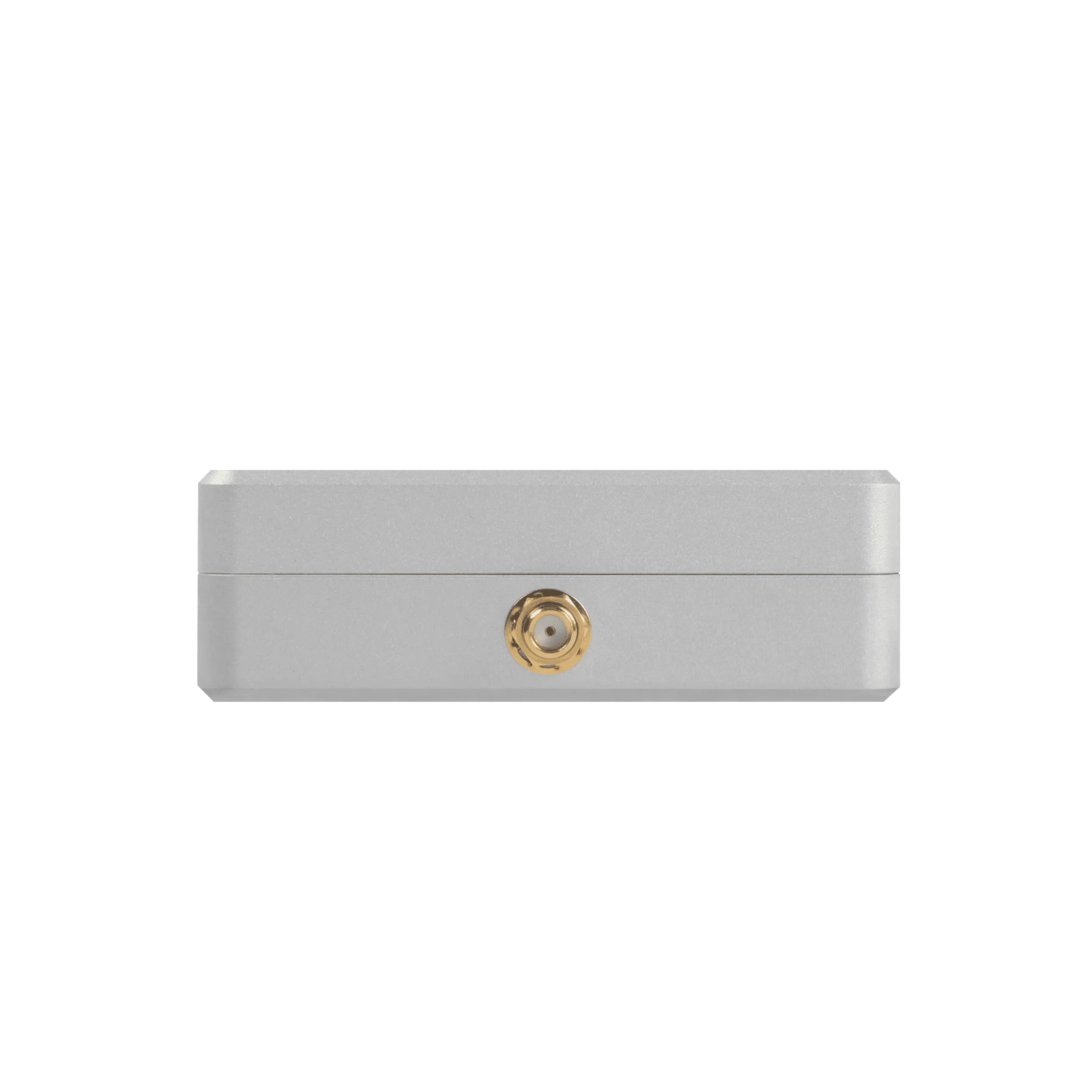

50 ohm SMA (f)

USB Type-C, 5 VDC, 3A

-33 °C to +55 °C / -27°F to 131 °F

135 x 84 x 25 mm / 5.32 x 3.31 x 1.1in

0.4 kg / 14.11 oz

IP54

*Guaranteed at 21 °C / 70 °F CW signal

Download datasheet

Applications

Antenna Fine Tuning

Align microwave radio links with precision to maximize system gain, improve signal quality, and minimize installation errors during setup and maintenance.

Broadcast Signal Maintenance

Ensure uninterrupted signal quality and consistent broadcast operation by detecting issues before they impact transmission.

External PIM Mitigation

Identify and eliminate external Passive Intermodulation (PIM) sources to improve network coverage and signal integrity.

Electromagnetic Warfare

Gain real-time awareness of the electromagnetic spectrum to detect threats, manage interference, and ensure secure communications.

Smart Grid Connectivity

Safeguard utility network links by analyzing on-site RF performance and detecting sources of interference.

Frequency Regulation

Conduct thorough site audits to verify radio transceiver parameters, confirm license compliance, and detect unauthorized spectrum use.

5G Network Deployment

Support efficient 5G rollout by performing comprehensive physical layer testing across low-band, mid-band, and mmWave frequencies.

Satellite Communications

Set up, verify, and troubleshoot remote terminals to maintain reliable, high-performance satellite communication links.

Downloads

Looking for detailed specs, configuration options, or use-case insights? Download the latest product documents to support your planning and deployment.
