TRUSTED COMPANION FOR PRECISE ANTENNA ALIGNMENT

SG Compact

Handheld 5.925 - 40 GHz signal generator for professionals
Get a quote
Overview
Highlights & Benefits
Key Characteristics
Applications
Downloads
SG Compact

The perfect tool for microwave system
analysis and measurement applications

Essential tool for RF field applications like precise antenna alignment and line-of-sight verification. It has intuitive control and interactive GUI with instant on/off functionality. The resistive touchscreen allows working with gloves on.

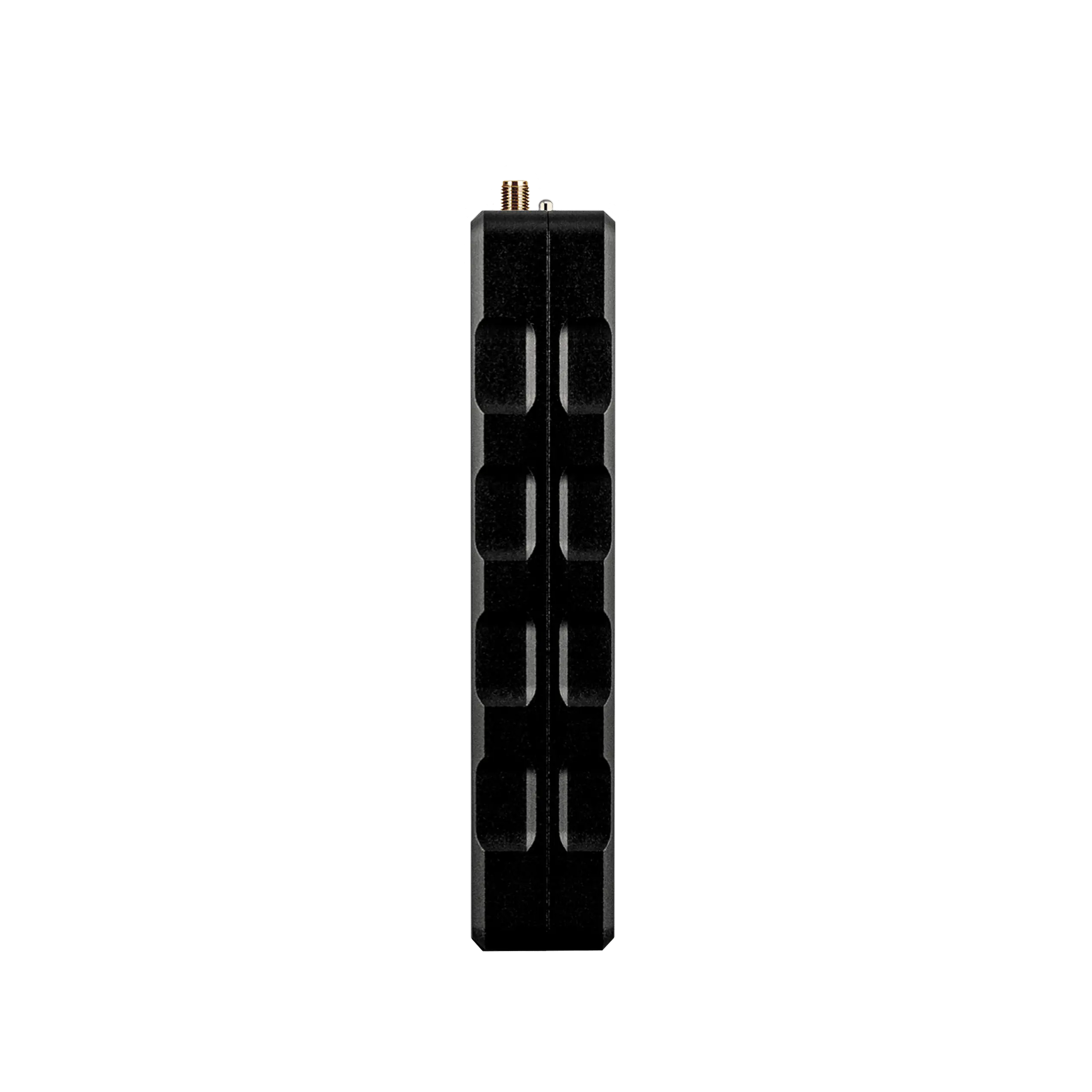

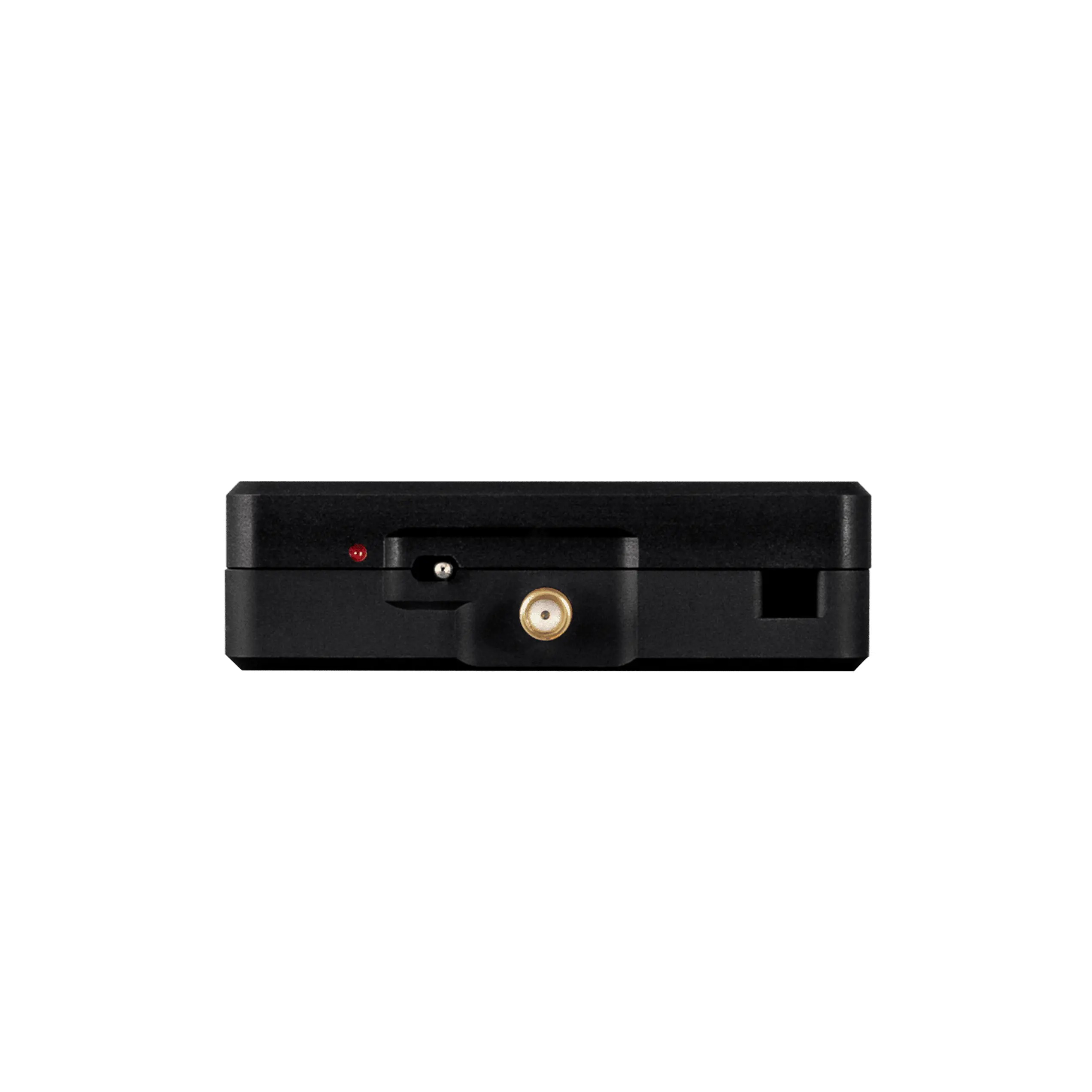

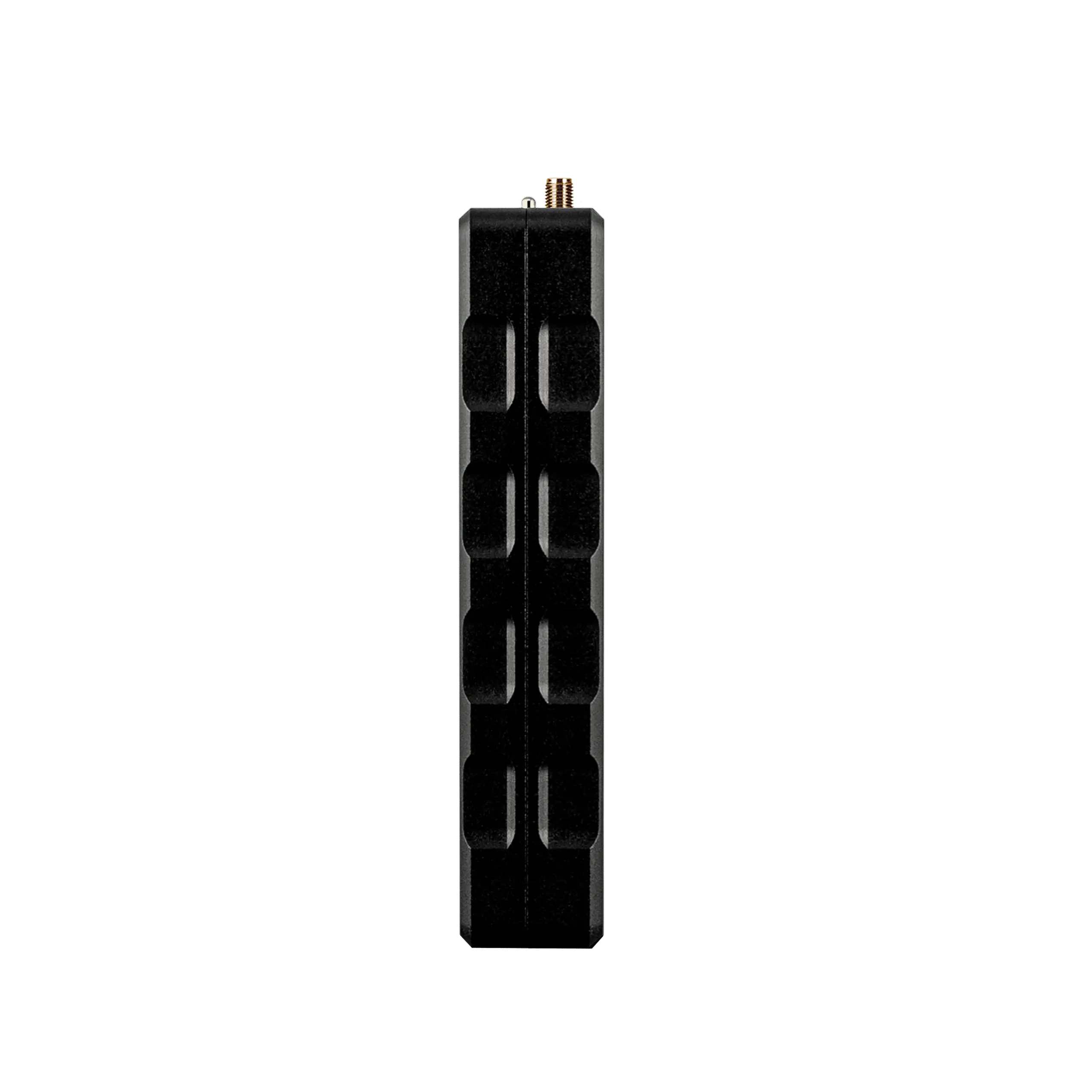

Ultra-Compact Form Factor
A truly hand-held device, designed specifically for convenient outdoor use in a variety of challenging environments.
Learn more

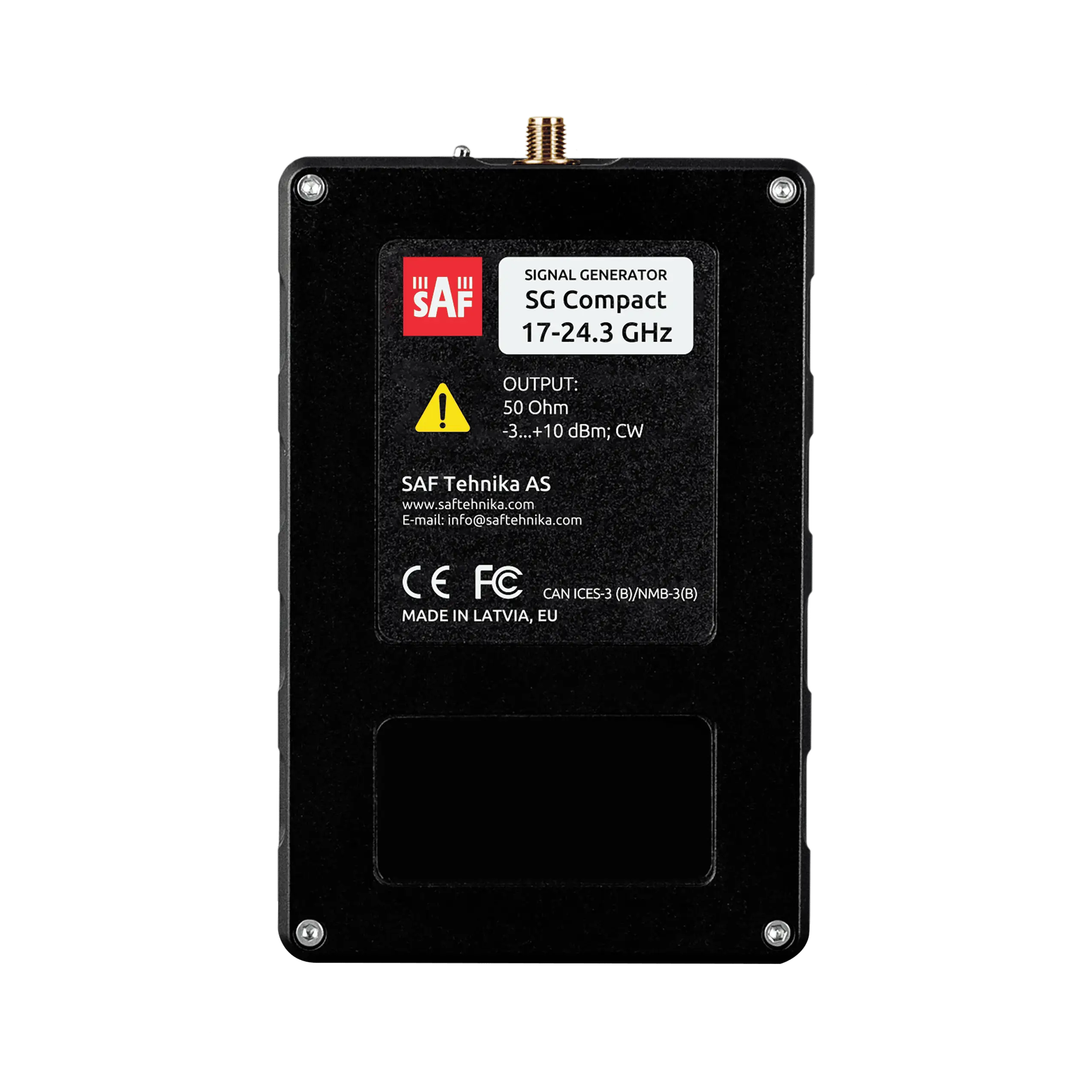

Compatible with Different Systems
Can be used with antennas and radio systems from SAF and other manufacturers.
Learn more

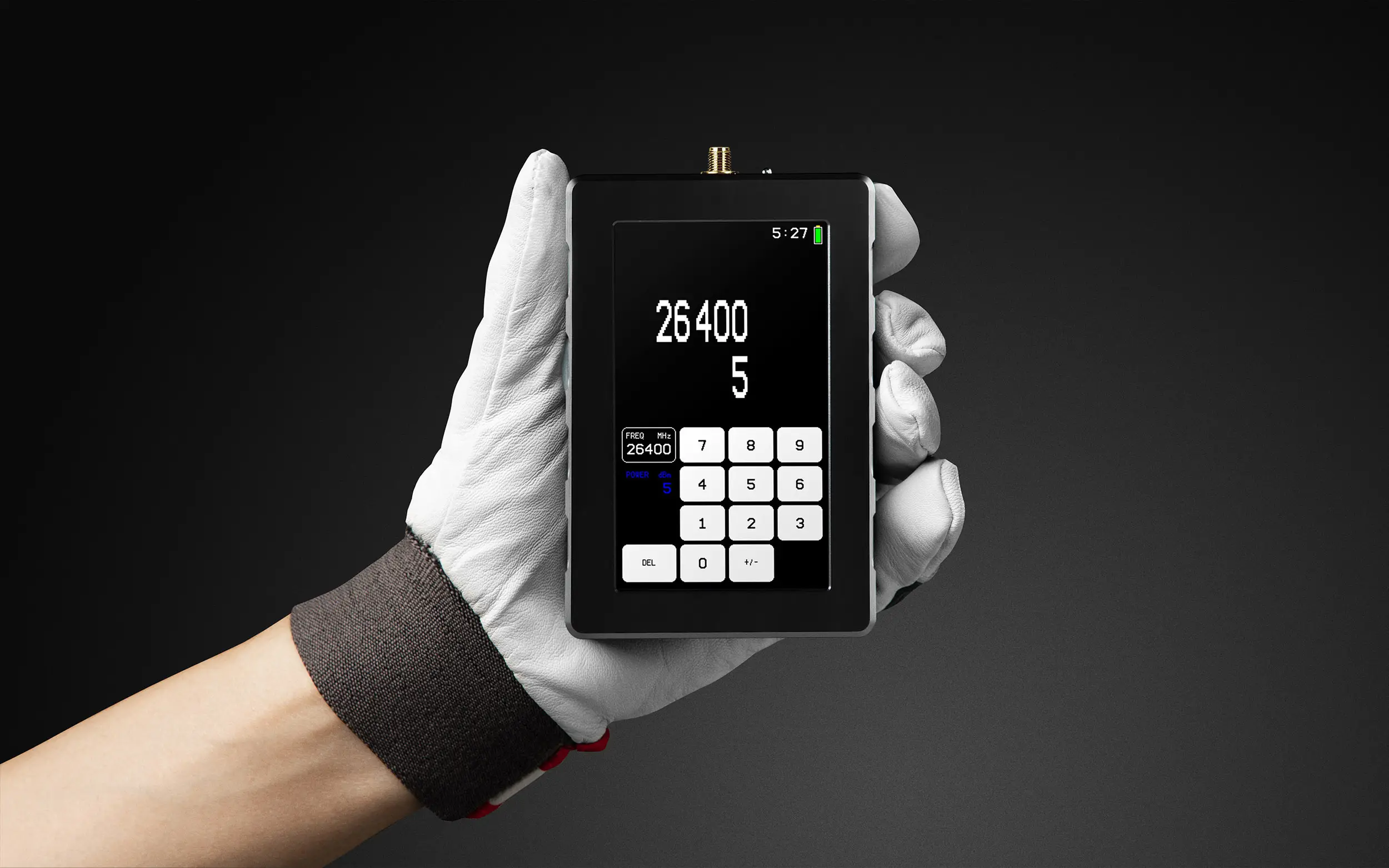

Resistive Touchscreen
Resistive LCD touchscreen allows to leave your gloves on while operating the unit. Intuitive UI makes it easy to control.
Learn more

Key Characteristics

5.925 - 12.0 GHz
10.0 - 18.0 GHz
17.0 - 24.3 GHz
24.0 - 40.0 GHz
Output power range
Frequency accuracy
Adjustable frequency step
Adjustable power step
Signal form
Accuracy
Output
Interface
Battery
Operating temperature
Dimensions
Weight
-3 dBm to +13 dBm
+/- 10 ppm
1 MHz
1 dBm
Continuous wave
+/- 1 dBm*
50 ohm SMA (f)
mini USB 2.0 (1.1)
up to 4h
-15 °C to +55 °C / 5 °F to 131 °F
128 x 81 x 24 mm / 5.04 x 3.2 x 0.94 in
0.3 kg / 10.6 oz
Output power range
Frequency accuracy
Adjustable frequency step
Adjustable power step
Signal form
Accuracy
Output
Interface
Battery
Operating temperature
Dimensions
Weight
-3 dBm to +11 dBm
+/- 10 ppm
1 MHz
1 dBm
Continuous wave
+/- 1 dBm*
50 ohm SMA (f)
mini USB 2.0 (1.1)
up tp 4h
-15°C to +55°C / 5°F to 131°F
128 x 81 x 24 mm / 5.04 x 3.2 x 0.94 in
0.3 kg / 10.6 oz
Output power range
Frequency accuracy
Adjustable frequency step
Adjustable power step
Signal form
Accuracy
Output
Interface
Battery
Operating temperature
Dimensions
Weight
-3 dBm to +10 dBm
+/- 10 ppm
1 MHz
1 dBm
Continuous wave
+/- 1 dBm*
50 ohm SMA (f)
mini USB 2.0 (1.1)
up tp 4h
-15°C to +55°C / 5°F to 131°F
128 x 81 x 24 mm / 5.04 x 3.2 x 0.94 in
0.3 kg / 10.6 oz
Output power range
Frequency accuracy
Adjustable frequency step
Adjustable power step
Signal form
Accuracy
Output
Interface
Battery
Operating temperature
Dimensions
Weight
-3 dBm to +5 dBm
+/- 10 ppm
1 MHz
1 dBm
Continuous wave
+/- 1 dBm*
50 ohm 2,92mm (f)
mini USB 2.0 (1.1)
up tp 3h
-15°C to +55°C / 5°F to 131°F
130 x 81 x 28 mm / 5.11 x 3.2 x 1.1 in
0.4 kg / 14.11 oz
*Guaranteed throughout all the temperature range
Download datasheets

Applications

Antenna Fine Tuning
Align microwave radio links with precision to maximize system gain, improve signal quality, and minimize installation errors during setup and maintenance.
Broadcast Signal Maintenance
Ensure uninterrupted signal quality and consistent broadcast operation by detecting issues before they impact transmission.
External PIM Mitigation
Identify and eliminate external Passive Intermodulation (PIM) sources to improve network coverage and signal integrity.
Electromagnetic Warfare
Gain real-time awareness of the electromagnetic spectrum to detect threats, manage interference, and ensure secure communications.
Smart Grid Connectivity
Safeguard utility network links by analyzing on-site RF performance and detecting sources of interference.
Frequency Regulation
Conduct thorough site audits to verify radio transceiver parameters, confirm license compliance, and detect unauthorized spectrum use.
5G Network Deployment
Support efficient 5G rollout by performing comprehensive physical layer testing across low-band, mid-band, and mmWave frequencies.
Satellite Communications
Set up, verify, and troubleshoot remote terminals to maintain reliable, high-performance satellite communication links.
