External PIM Mitigation

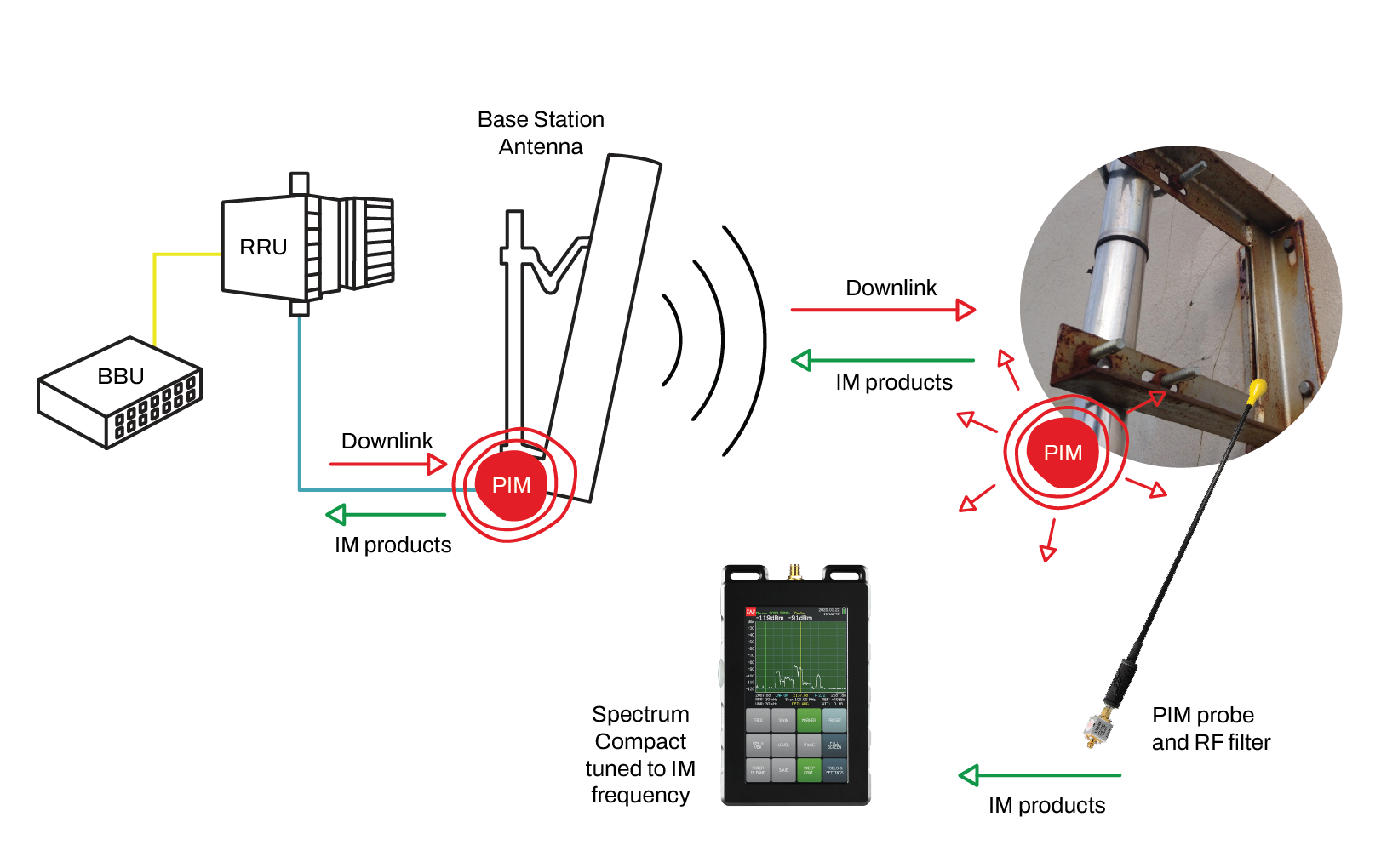

As wireless networks grow in bandwidth and density, rooftops and towers become increasingly susceptible to external passive intermodulation (PIM). Nonlinear junctions such as brackets, bolts, cable trays, or dissimilar metals can mix high-power downlink signals and generate interference in the uplink band. The result is elevated noise floors, degraded KPIs, and reduced coverage.

External PIM often appears as a raised or sloping uplink noise floor, making it difficult to distinguish from general interference. Multi-band deployments and expanding spectrum increase the likelihood of higher-order products affecting adjacent services. Traditional PIM testing requires radio shutdown and intrusive test setup, introducing downtime and operational risk.

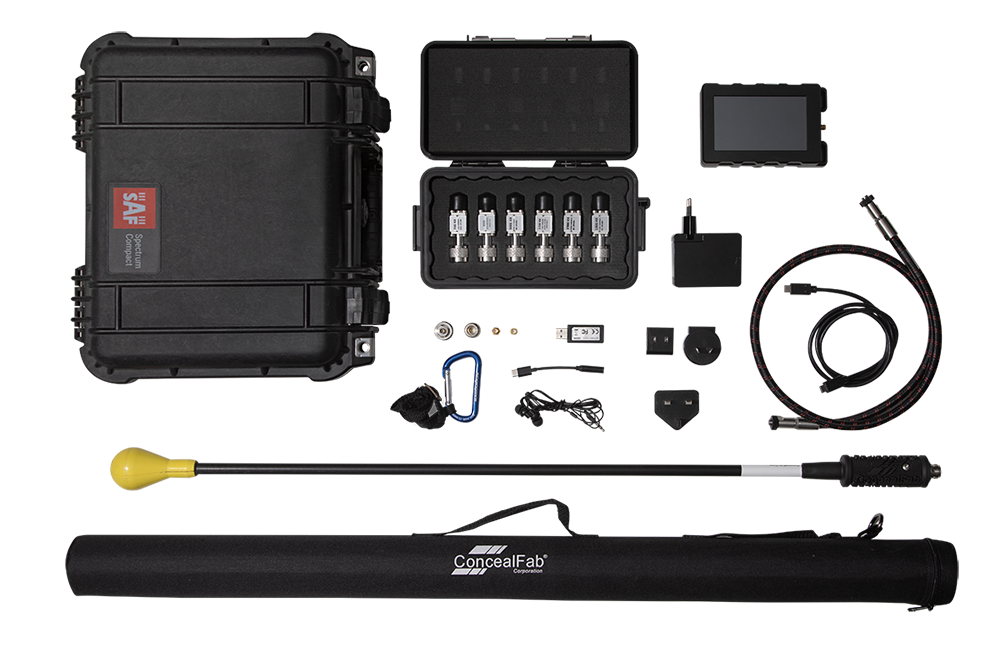

The Spectrum Compact PIM Hunting Kit enables fast identification of external PIM sources while the site remains on air. The lightweight kit includes a handheld spectrum analyzer, PIM test probe, RF filter set, and dedicated firmware with Zero-Span and audio indication. Audible and visual feedback allow technicians to pinpoint nonlinear hotspots efficiently and document results using Spectrum Manager PC Software.

‍

Ready to integrate this kit into daily operations?

Get a quote

Typical Field Operations & Use Cases

For Mobile Network Operators

Troubleshooting elevated uplink noise floors
Identifying rooftop and tower-generated PIM
Pre and post-mitigation validation

For Field Engineering Teams

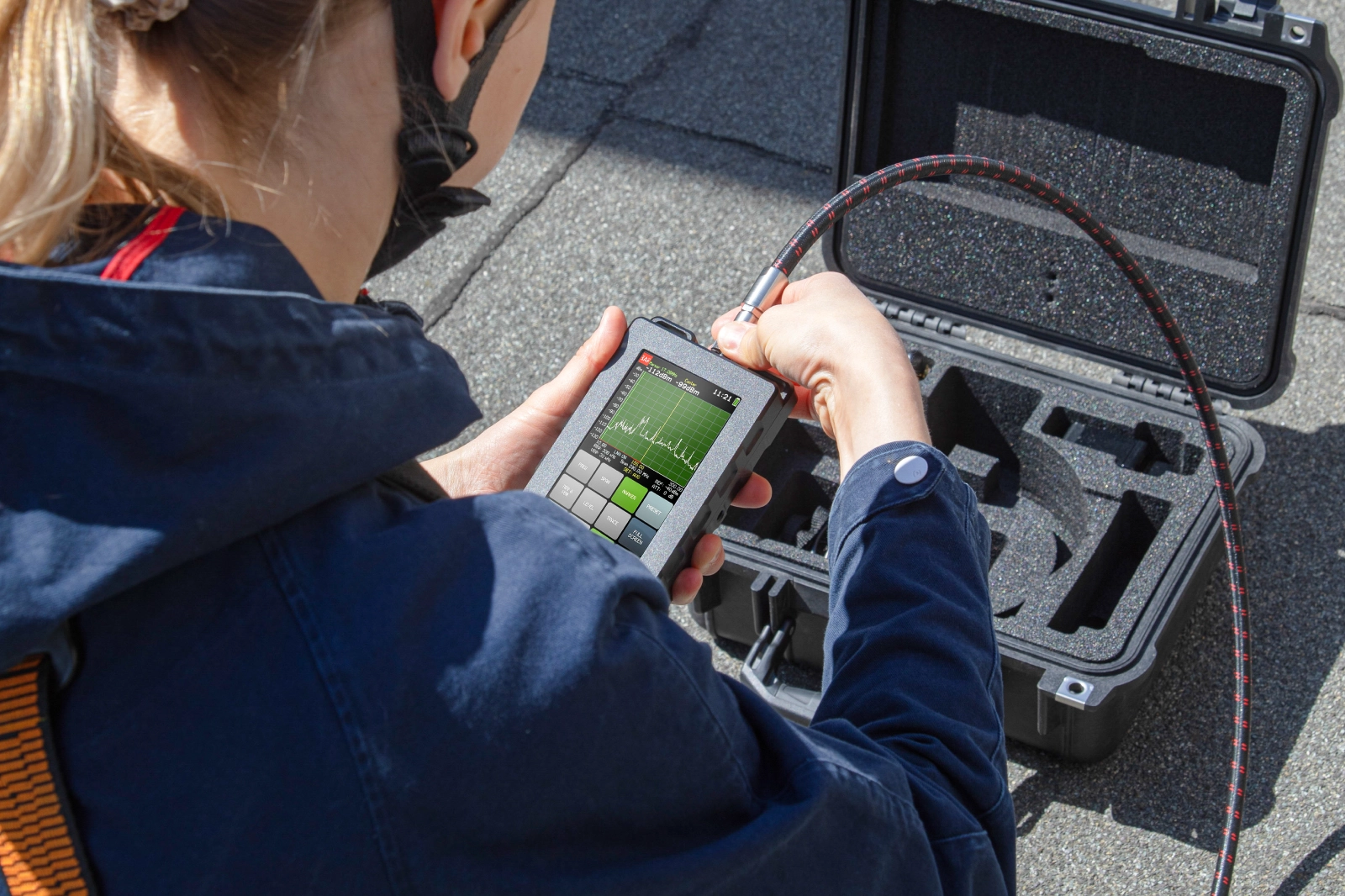

Rapid on-site PIM assessment
Differentiating PIM from interference
Localizing and confirming external sources

‍

By monitoring the uplink band without breaking into the RF chain, technicians can identify true external PIM sources quickly and with minimal disruption. This approach reduces unnecessary hardware replacement, limits downtime, and improves confidence in mitigation decisions.

See how the Spectrum Compact PIM Hunting Kit makes finding external PIM fast and intuitive. Watch our startup guide to see kit setup, Spectrum Compact configuration, and real-world PIM hunting in action.

Watch video
