THE WORLD’S FIRST HANDHELD SPECTRUM ANALYZER

Spectrum Compact

Radio frequency analysis tool that simplify spectrum planning, maintenance, and regulatory compliance – saving time, reducing costs, and ensuring precision.
Get a quote
Overview
Highlights & Benefits
Key Characteristics
Applications
Downloads

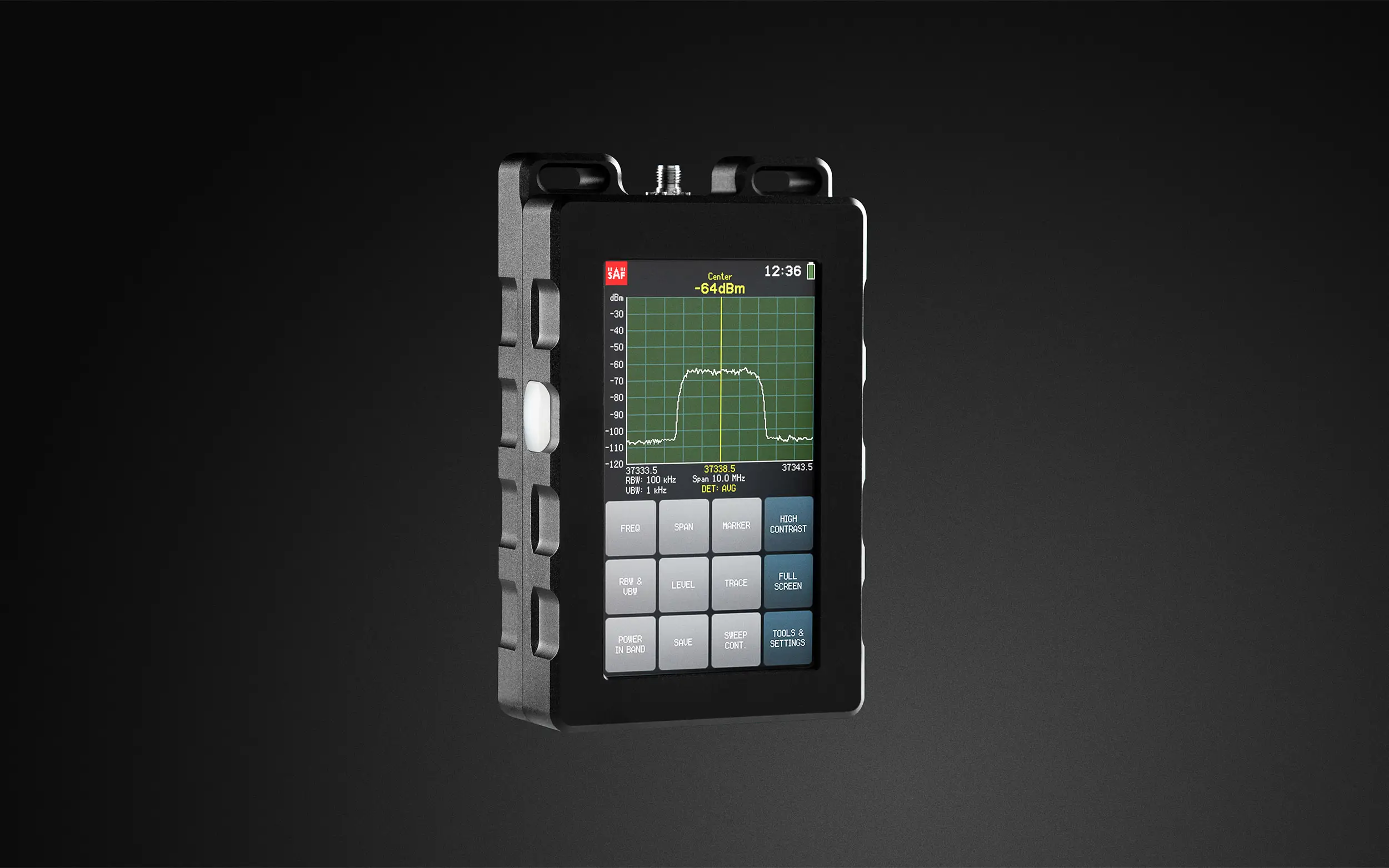

Spectrum Compact

RF analysis from the palm of your hand

Spectrum Compact is a portable, stand-alone RF spectrum analyzer designed for field use across industries like telecom, defense, and utilities. It offers high sensitivity, low noise, and rugged performance in extreme conditions, with instant on/off, glove-friendly controls, and up to 4 hours of battery life.
Covering 10 MHz to 87 GHz across 7 models, Spectrum Compact supports tasks like interference hunting, signal RF parameter verification, and antenna alignment. It can be integrated with a PC software and APIs for advanced projects – all in a compact, drone-compatible form.
Ultra-Compact Form Factor
A truly handheld device, designed specifically for convenient outdoor use in a variety of challenging environments.
Learn more
Compatible with Different Systems
Can be used with antennas and radio systems from SAF and other manufacturers.
Learn more

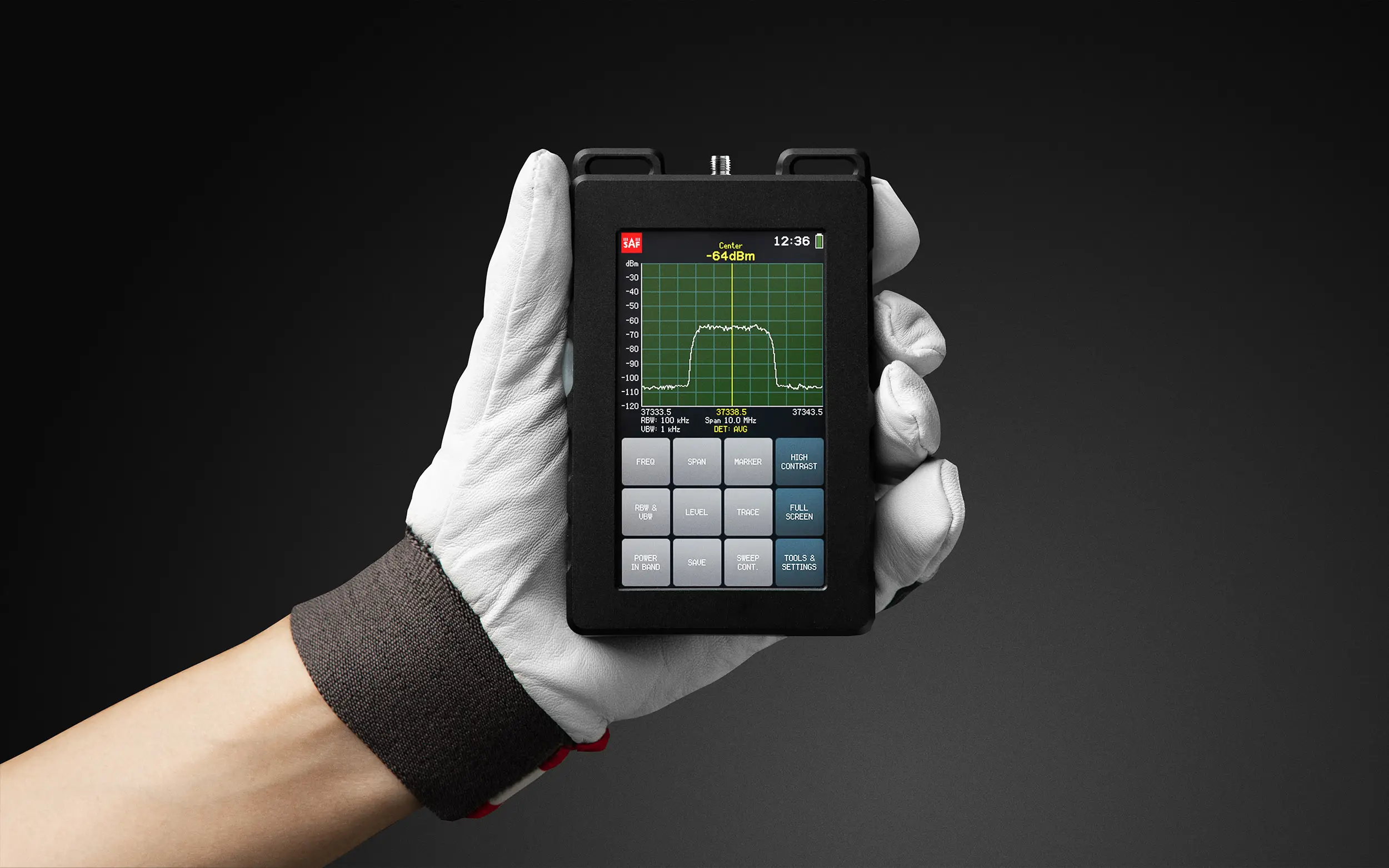

Resistive Touchscreen
A resistive LCD touchscreen allows you to leave your gloves on while operating the unit. Intuitive UI makes it easy to control.
Learn more
Leading Sensitivity
Industry-leading receiver sensitivity in all frequency ranges allows the discovery of even the weakest signals.
Learn more
PC Software
Upload, save, compare, analyze and print your saved test data using free PC software.
Learn more
Industrial-Grade Durability
IP54 International Protection Rating (IP code) ensures that the device is fully dust protected and can be used in rainy conditions.
Learn more

Key Characteristics

0.01 - 3.0 GHz
2.0 - 8.0 GHz
5.925 - 20.0 GHz
16.0 - 26.5 GHz
24.0 - 43.0 GHz
56.0 - 71.0 GHz
70.0 - 87.0 GHz
Displayed average noise level
Max. input power
RBW (Resolution Bandwidth)
VBW (Video Bandwidth)
Min. span
Max. span
Sweep speed
Accuracy
Input
Interface
Battery life
Operating temperature
Dimensions
Weight
<-125 dBm @ RBW=10 kHz**
+25 dBm
10, 30, 100, 300 kHz
1, 3, 10, 30 kHz
0.5 MHz
full bandwidth
130 ms @ 15 MHz Span
-/+ 1dB*
50 ohm SMA (f)
USB Type-C
up to 4h
-15°C to +55°C / 5°F to 131°F
135 x 83 x 34 mm / 5.31 x 3.27 x 1.34 in
0.57 kg / 20.11 oz
Displayed Average Noise Level
Max Input Power
RBW (Resolution Bandwidth)
VBW (Video Bandwidth)
Minimum Span
Maximum Span
Sweep Speed
Accuracy
Input
Interface
Battery Life
Operating Temperature
Dimensions
Weight
<-118 dBm @ RBW=30 kHz
+25 dBm
10, 30, 100, 300, 1000 kHz
1, 3, 10, 30, 100 kHz
1.5 MHz
full bandwidth
72 ms @ 50 MHz Span
-/+ 1dB*
50 ohm SMA (f)
USB Type-C
up to 4h
-15°C to +55°C / 5°F to 131°F
135 x 83 x 34 mm / 5.31 x 3.27 x 1.34 in
0.57 kg / 20.11 oz
Displayed Average Noise Level
Max Input Power
RBW (Resolution Bandwidth)
VBW (Video Bandwidth)
Minimum Span
Maximum Span
Sweep Speed
Accuracy
Input
Interface
Battery Life
Operating Temperature
Dimensions
Weight
<-116 dBm @ RBW=30 kHz
+25 dBm
30, 100, 300, 1000 kHz
1, 3, 10, 30, 100 kHz
1.5 MHz
full bandwidth
75 ms @ 50 MHz Span
-/+ 1dB*
50 ohm SMA (f)
USB Type-C
up to 4h
-15°C to +55°C / 5°F to 131°F
135 x 83 x 34 mm / 5.31 x 3.27 x 1.34 in
0.57 kg / 20.11 oz
Displayed Average Noise Level
Max Input Power
RBW (Resolution Bandwidth)
VBW (Video Bandwidth)
Minimum Span
Maximum Span
Sweep Speed
Accuracy
Input
Interface
Battery Life
Operating Temperature
Dimensions
Weight
<-106 dBm @ RBW=100 kHz
+25 dBm
100, 300, 1000 kHz
1, 3, 10, 30, 100 kHz
5 MHz
full bandwidth
70 ms @ 50 MHz Span
-/+ 1dB*
50 ohm 2.92 mm (f)
USB Type-C
up to 4h
-15°C to +55°C / 5°F to 131°F
135 x 83 x 34 mm / 5.31 x 3.27 x 1.34 in
0.57 kg / 20.11 oz
Displayed Average Noise Level
Max Input Power
RBW (Resolution Bandwidth)
VBW (Video Bandwidth)
Minimum Span
Maximum Span
Sweep Speed
Accuracy
Input
Interface
Battery Life
Operating Temperature
Dimensions
Weight
<-101 dBm @ RBW=100kHz
0 dBm
100, 300, 1000 kHz
1, 3, 10, 30, 100 kHz
5 MHz
full bandwidth
66 ms @ 100 MHz Span
-/+ 1dB*
50 ohm 2.92 mm (f)
USB Type-C
up to 3h
-15°C to +55°C / 5°F to 131°F
135 x 83 x 34 mm / 5.31 x 3.27 x 1.34 in
0.57 kg / 20.11 oz
Displayed Average Noise Level
Max Input Power
RBW (Resolution Bandwidth)
VBW (Video Bandwidth)
Minimum Span
Maximum Span
Sweep Speed
Accuracy
Input
Interface
Battery Life
Operating Temperature
Dimensions
Weight
<-90 dBm @ RBW=10 MHz**
0 dBm
10 MHz
300 kHz
1 GHz
full bandwidth
0.5s @ 1 GHz Span
-/+ 1dB*
WR 15
micro USB 2.0 (1.1)
up to 3h
-15°C to +55°C / 5°F to 131°F
135 x 83 x 34 mm / 5.31 x 3.27 x 1.34 in
0.57 kg / 20.11 oz
Displayed Average Noise Level
Max Input Power
RBW (Resolution Bandwidth)
VBW (Video Bandwidth)
Minimum Span
Maximum Span
Sweep Speed
Accuracy
Input
Interface
Battery Life
Operating Temperature
Dimensions
Weight
<-90 dBm @ RBW=10 MHz
0 dBm
10 MHz
300 kHz
1 GHz
full bandwidth
0.5s @ 1 GHz Span
-/+ 1dB*
WR 12
micro USB 2.0 (1.1)
up to 3h
-15°C to +55°C / 5°F to 131°F
135 x 83 x 34 mm / 5.31 x 3.27 x 1.34 in
0.57 kg / 20.11 oz
*Guaranteed at 21 °C / 70 °F CW signal
Download datasheets

Applications

Antenna Fine Tuning
Align microwave radio links with precision to maximize system gain, improve signal quality, and minimize installation errors during setup and maintenance.
Broadcast Signal Maintenance
Ensure uninterrupted signal quality and consistent broadcast operation by detecting issues before they impact transmission.
External PIM Mitigation
Identify and eliminate external Passive Intermodulation (PIM) sources to improve network coverage and signal integrity.
Electromagnetic Warfare
Gain real-time awareness of the electromagnetic spectrum to detect threats, manage interference, and ensure secure communications.
Smart Grid Connectivity
Safeguard utility network links by analyzing on-site RF performance and detecting sources of interference.
Frequency Regulation
Conduct thorough site audits to verify radio transceiver parameters, confirm license compliance, and detect unauthorized spectrum use.
5G Network Deployment
Support efficient 5G rollout by performing comprehensive physical layer testing across low-band, mid-band, and mmWave frequencies.
Satellite Communications
Set up, verify, and troubleshoot remote terminals to maintain reliable, high-performance satellite communication links.

Downloads

Looking for detailed specs, configuration options, or use-case insights? Download the latest product documents to support your planning and deployment.
