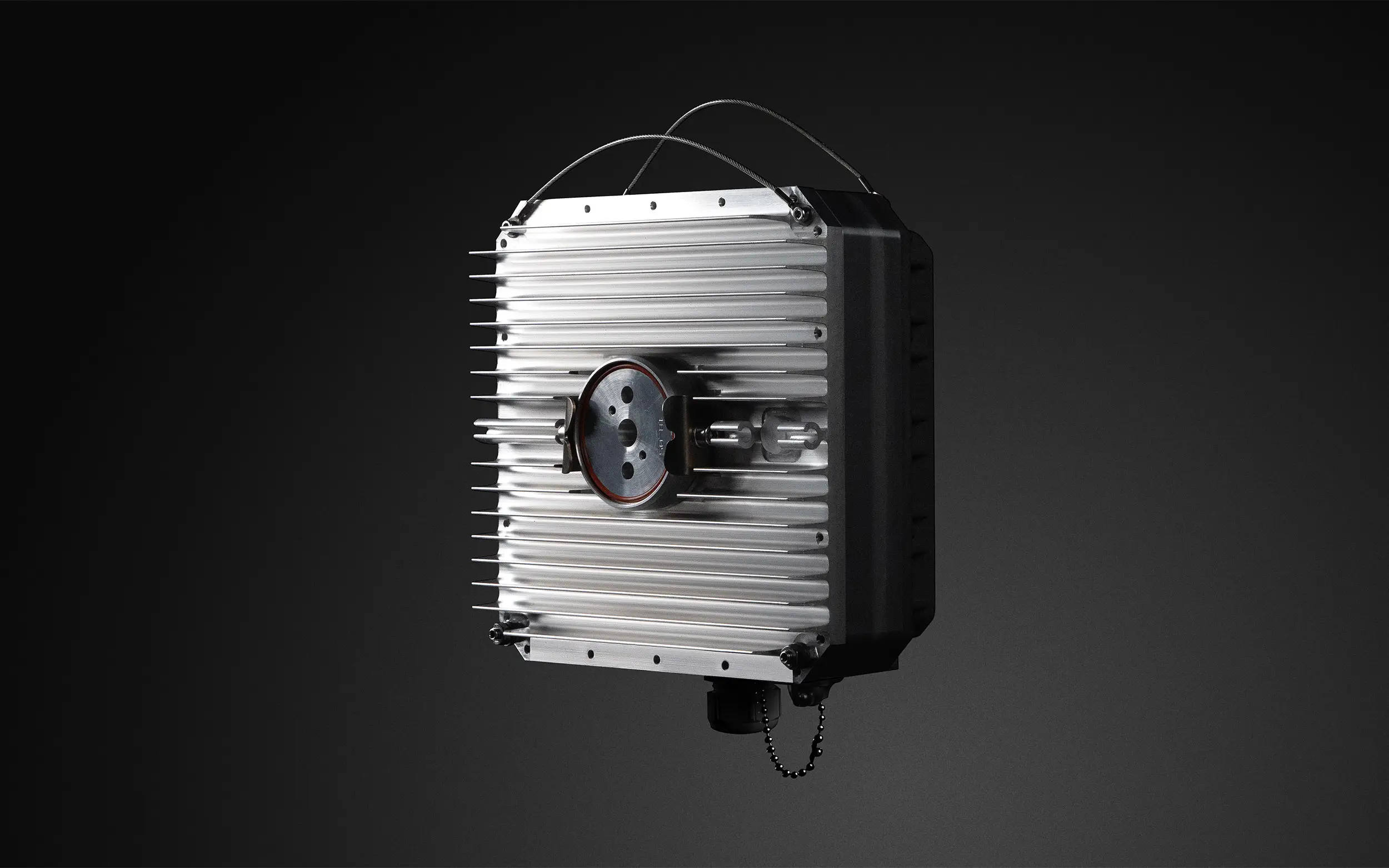

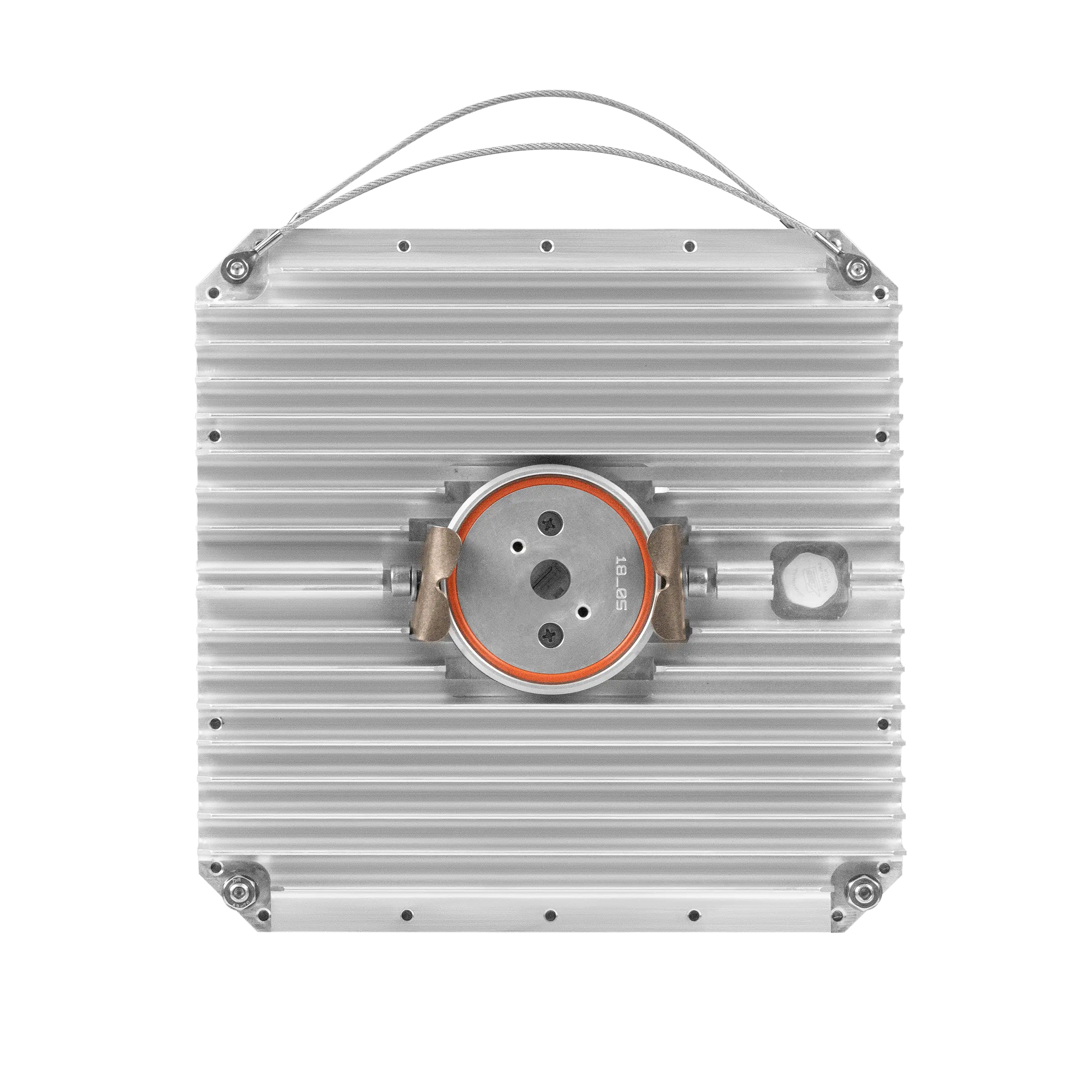

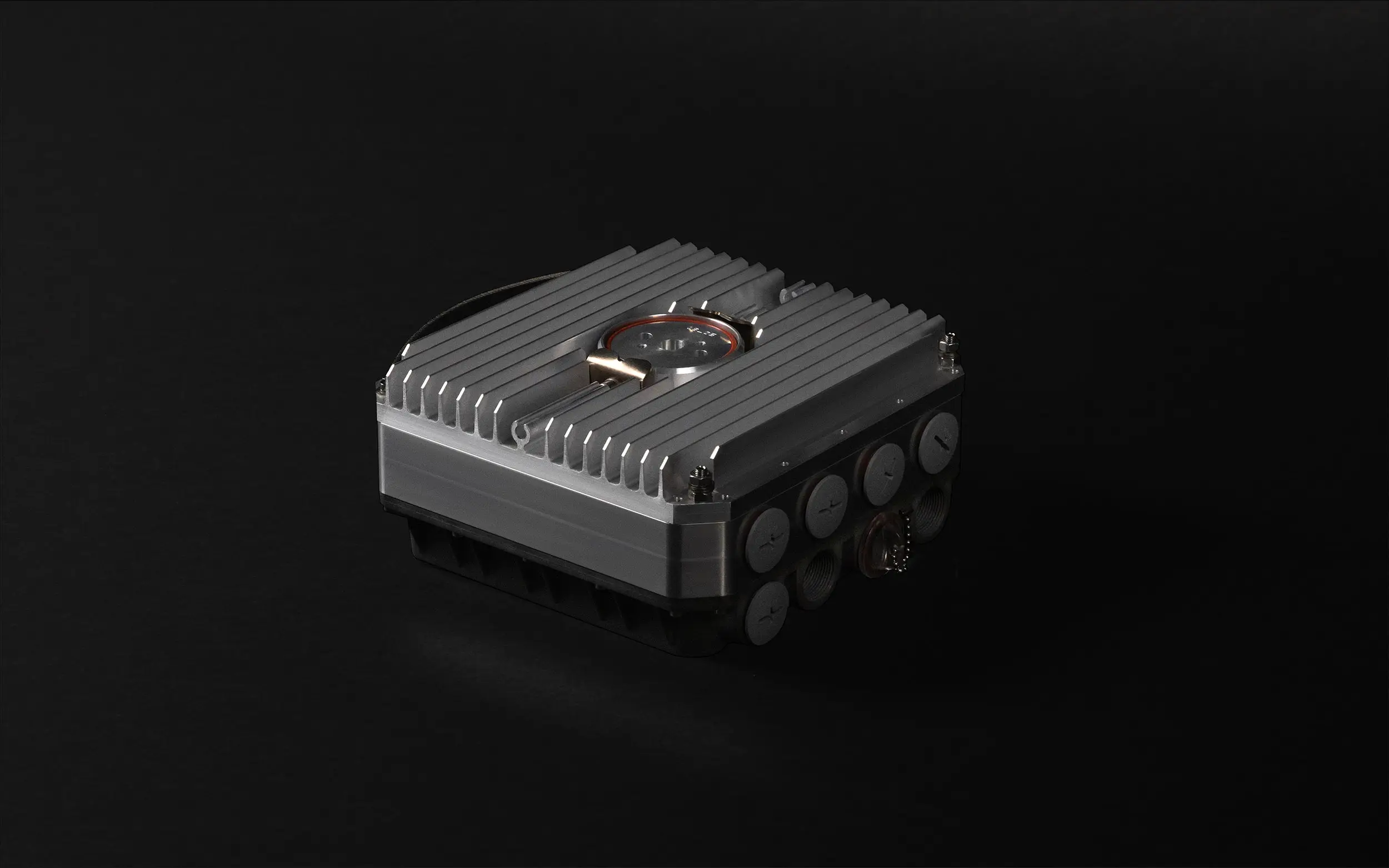

Integra-W

Integrated system for wideband high-capacity applications

Integra-W is SAF Tehnika’s purpose-built wideband microwave radio, offering up to 883 Mbps throughput per full-duplex link with channel bandwidths up to 112 MHz and modulation up to 1024QAM. Housed in a compact, all-in-one design with integrated modem, PoE splitter, and surge protection, it enables fast, shelter-free deployments - even in harsh environments. Advanced pre-distortion technology and high Tx power ensure strong signal integrity over long distances.

With a system gain of up to 87 dBm and link availability up to 99.995%, Integra-W is ideal for extending high-capacity backhaul where fiber isn't feasible. Its rugged build, superb corrosion resistance, and industry-best lightning protection make it one of the most durable radios on the market - engineered for networks that can’t afford downtime.

900 Mbps Backbone Link

Long distance 900 Mbps backbone link with two radio links in 80MHz at 256QAM with a system gain as high as 87 dBm.

Learn more

Better Link Performance

High Tx power and an advanced pre-distortion algorithm allow for long distance links. Superb for extending a Fiber Optics network over high capacity radio. Integra WS can reach up to 122km with a 99.995% availability rate. Distance varies due to environment and capacity settings.

Learn more

All-Outdoor

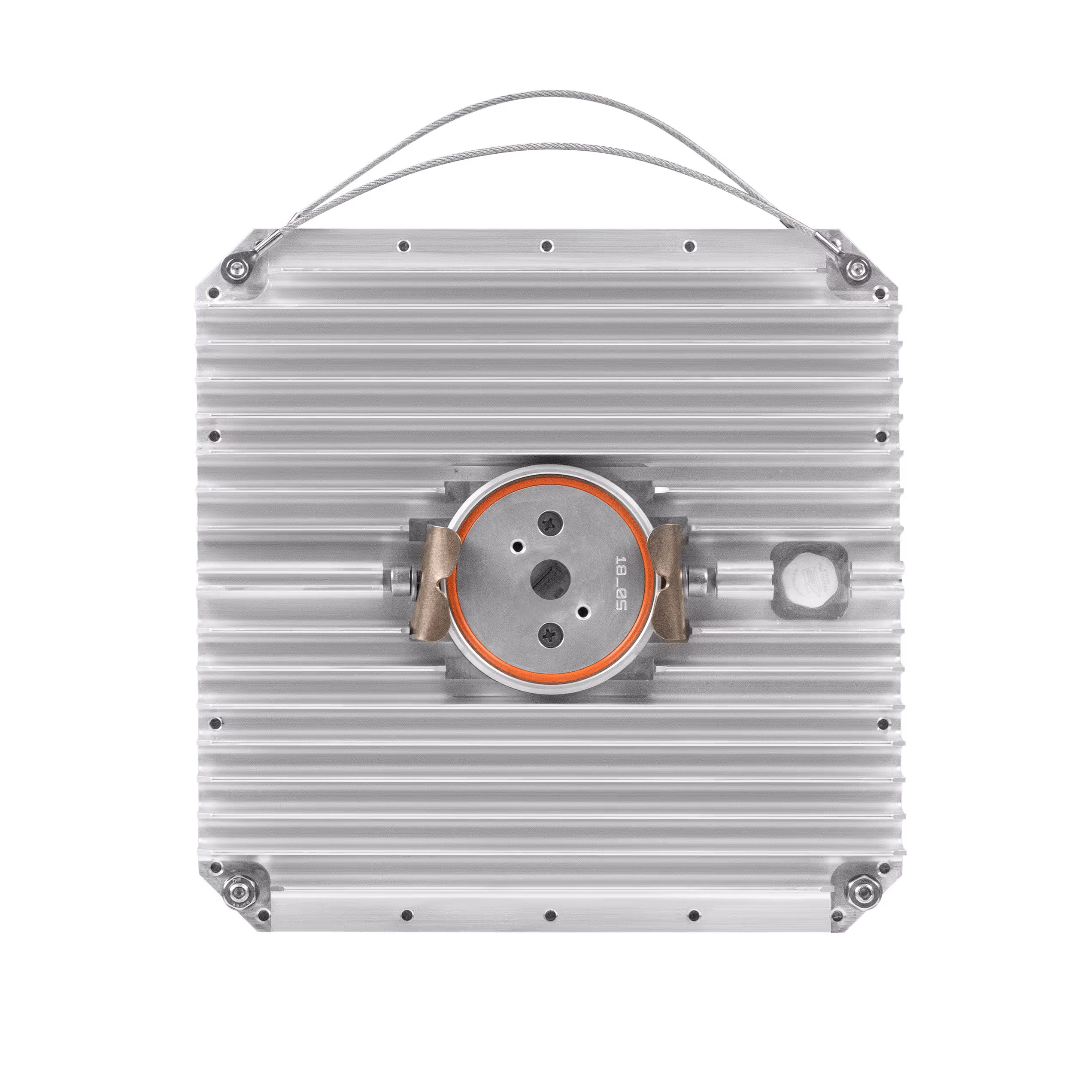

All-outdoor system consists of a radio, modem and PoE splitter with a surge arrestor in a single HW design which can be directly mounted to the antenna, allowing for shelter-free installations.

Learn more

The Highest Reliability

High reliability innovative materials for the best corrosion resistance, EMC isolation and a great heat dissipation system result in the radio supporting a wide temperature range. The best possible lightning protection - no risk of damaging the data transmission equipment over data cable.

Learn more

Wideband Channel

Delivers up to 883 Mbps capacity in a single radio using 112 MHz channel bandwidth. Ideal for backbone links requiring maximum throughput and efficient spectrum use.

Learn more

High Performance Pre-Distortion

High performance pre-distortion algorithm enables high Tx power performance.

Learn more

Key Characteristics

None

Capacity

Frequency bands

Max. modulation

Channel bandwidth

ETSI

FCC

Configurations

Gigabit Ethernet

Management

Antenna

Form factor

Temperature range

Integra-W

883 Mbps at 112 MHz 1024QAM
643 Mbps at 80 MHz 1024QAM

6, 7, 8, 11, 13, 15, 17, 18, 23, 24, 25, 26, 28, 38 GHz and more*

1024QAM with hitless ACM

from 56 MHz up to 112 MHz

from 40 MHz up to 80 MHz

1+0

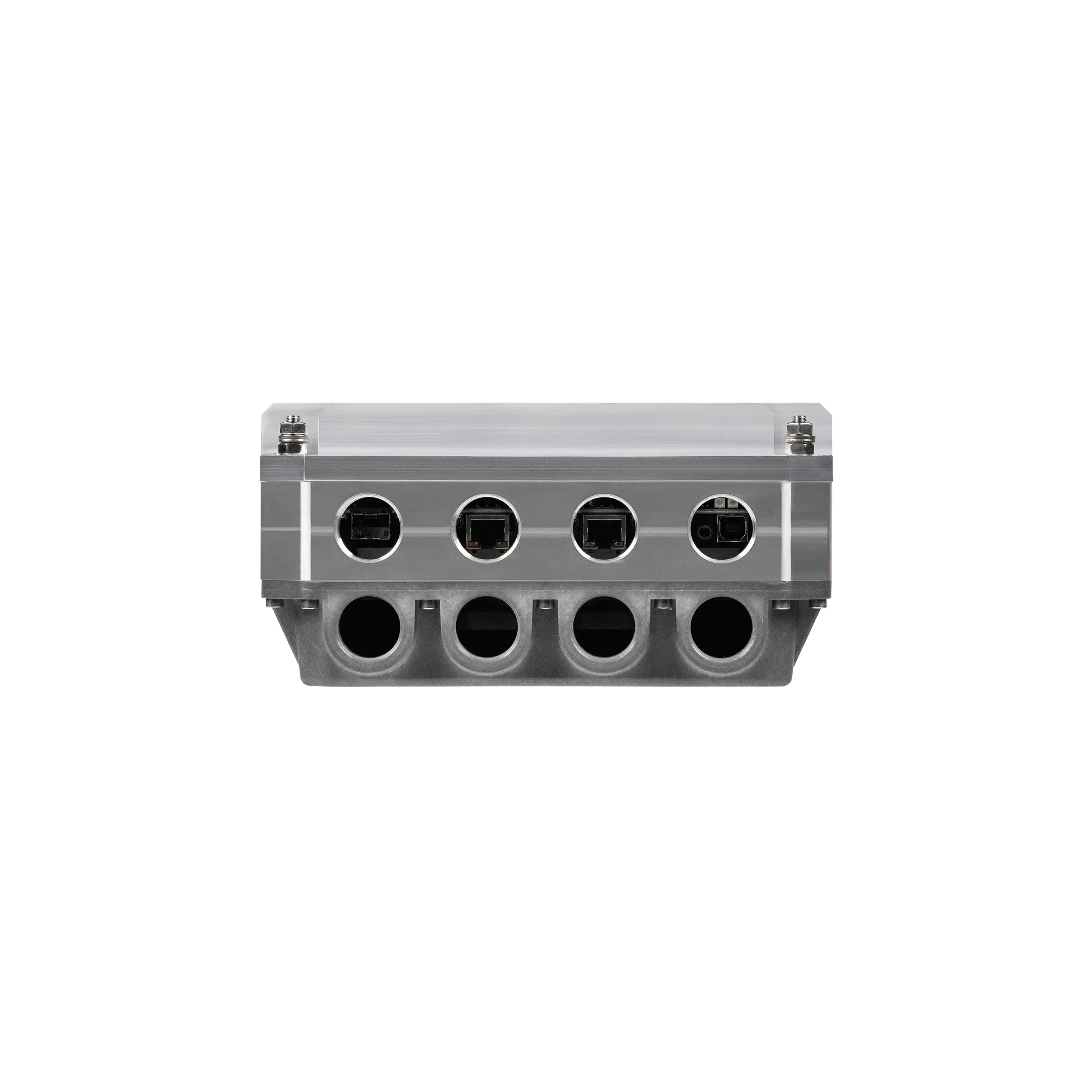

2xRJ-45, 1xSFP

Out-of-band, In-band

SNMP v1/2c/3, SSH, Telnet, HTTPS, Serial, RADIUS, Network Time Protocol

External antenna (default)*

280 x 437 x 100 mm / 11.02” x 17.2” x 3.9” (6-13 GHz)
235 x 250 x 72 mm / 9.26” x 9.85” x 2.84” (15-38 GHz)
235 x 250 x 111 mm / 9.26” x 9.85” x 4.37” (17/24 GHz)

-33 ... +55 °C / -28 … +130 °F

*Inquire SAF Tehnika representative for more information
